Querying L4 Metrics from Prometheus

Preparation

1. Install Kmesh

Please refer to the quickstart guide

Note: The following should be added to the Kmesh annotation:

annotations:
  prometheus.io/path: "status/metric"
  prometheus.io/port: "15020"
  prometheus.io/scrape: "true"

2. Configure Kmesh to manage the default namespace

kubectl label namespace default istio.io/dataplane-mode=Kmesh

Expected output:

namespace/default labeled

3. Install the Prometheus Addon

Istio provides a basic sample installation to quickly get Prometheus up and running:

kubectl apply -f https://raw.githubusercontent.com/kmesh-net/kmesh/main/samples/addons/prometheus.yaml

4. Deploy the tcp-echo and sleep applications

# Deploy tcp-echo application
kubectl apply -f https://raw.githubusercontent.com/kmesh-net/kmesh/main/samples/tcp-echo/tcp-echo.yaml

# Deploy sleep application
kubectl apply -f https://raw.githubusercontent.com/kmesh-net/kmesh/main/samples/sleep/sleep.yaml

# Verify deployments
kubectl get po -A

Expected output:

NAMESPACE            NAME                                          READY   STATUS    RESTARTS   AGE
default              sleep-bc9998558-pbfvk                         1/1     Running   0          7m
default              tcp-echo-7f676db574-mzmql                     1/1     Running   0          7m

Important: Confirm that sleep and tcp-echo are indeed managed by kmesh.

5. Enable required metrics

Kmesh prometheus metrics can be enabled and disabled using kmeshctl. Please refer to the kmeshctl Guide

Querying Metrics from Prometheus

Available Metrics

Metrics monitored by Kmesh L4 at this stage:

Workload Metrics

Give information about traffic behavior and performance between workloads.

Name	Description
kmesh_tcp_workload_connections_opened_total	The total number of TCP connections opened to a workload
kmesh_tcp_workload_connections_closed_total	The total number of TCP connections closed to a workload
kmesh_tcp_workload_received_bytes_total	The size of the total number of bytes received in response to a workload over a TCP connection
kmesh_tcp_workload_sent_bytes_total	The size of the total number of bytes sent in response to a workload over a TCP connection
kmesh_tcp_workload_conntections_failed_total	The total number of TCP connections failed to a workload
kmesh_tcp_retrans_total	Total number of retransmissions of the workload over the TCP connection
kmesh_tcp_packet_loss_total	Total number of TCP packets lost between source and destination workload

Service Metrics

Give information about traffic behavior and performance between services.

Name	Description
kmesh_tcp_connections_opened_total	The total number of TCP connections opened to a service
kmesh_tcp_connections_closed_total	The total number of TCP connections closed to a service
kmesh_tcp_received_bytes_total	The size of the total number of bytes received in response to a service over a TCP connection
kmesh_tcp_sent_bytes_total	The size of the total number of bytes sent in response to a service over a TCP connection
kmesh_tcp_conntections_failed_total	The total number of TCP connections failed to a service

Connection Metrics

Give information about traffic behavior and performance of a established tcp connection(duration > 5 seconds). These metrics are particularly valuable in clusters running workloads that establish long-lived TCP connections, such as databases, message brokers, audio/video streaming services, AI applications etc. It is recommended to set the scrape interval to 5 seconds to ensure connection metrics are reliably captured.

Name	Description
kmesh_tcp_connection_sent_bytes_total	The total number of bytes sent over established TCP connection
kmesh_tcp_connection_received_bytes_total	The total number of bytes received over established TCP connection
kmesh_tcp_connection_packet_lost_total	Total number of packets lost during transmission in a TCP connection
kmesh_tcp_connection_retrans_total	The total number of retransmits over established TCP connection

Querying Steps

Here's how to view these metrics through Prometheus:

1. Verify that the Prometheus service is running in your cluster

In Kubernetes environment, execute the following command:

kubectl -n kmesh-system get svc prometheus

Expected output:

NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
prometheus   ClusterIP   10.96.18.252   <none>        9090/TCP   24h

2. Establish a TCP connection between applications in the mesh

Create a TCP link between sleep and tcp-echo with the nc command:

kubectl exec "$(kubectl get pod -l app=sleep -o jsonpath={.items..metadata.name})" \
  -c sleep -- sh -c 'echo "port 9000" | nc tcp-echo 9000' | grep "hello" && \
  echo 'connection succeeded' || echo 'connection rejected'

Expected output:

hello port 9000
connection succeeded

3. Open the Prometheus UI

Use the port-forward command to forward the traffic to Prometheus:

kubectl port-forward --address 0.0.0.0 svc/prometheus 9090:9090 -n kmesh-system

Expected output:

Forwarding from 0.0.0.0:9090 -> 9090
Handling connection for 9090
Handling connection for 9090

4. Execute a Prometheus query

In the "Expression" input box at the top of the web page, enter the text:

kmesh_tcp_connections_opened_total

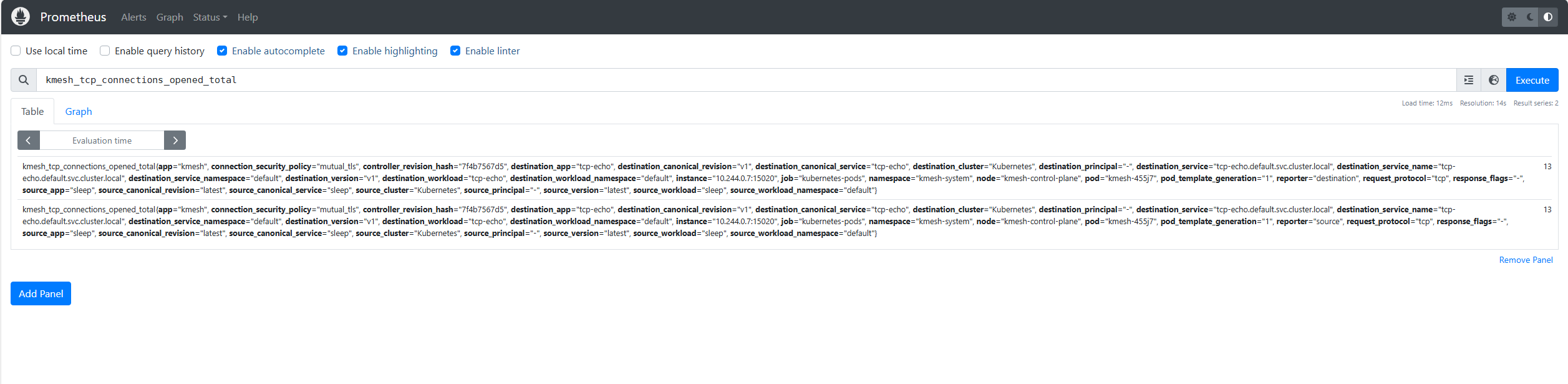

The results will be similar to:

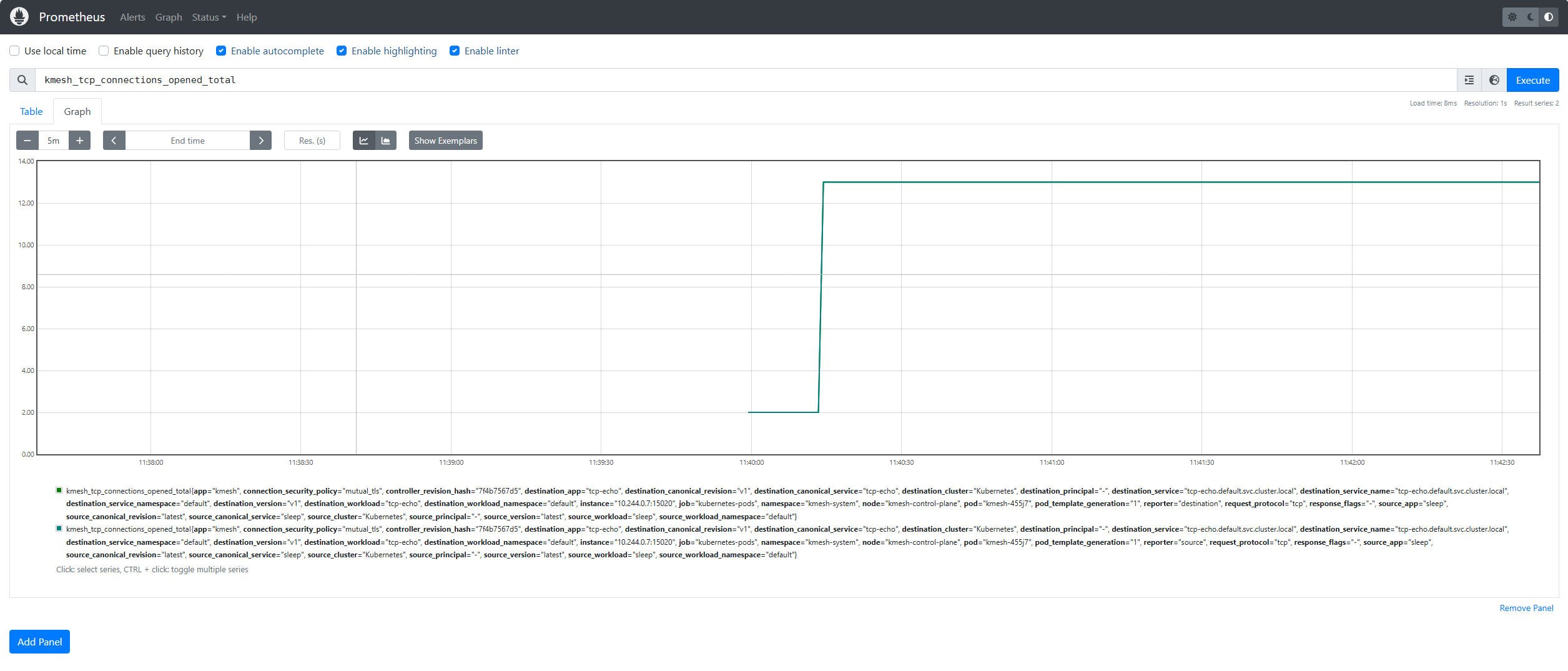

You can also see the query results graphically by selecting the Graph tab underneath the Execute button.

Cleanup

1. Disable port-forward.

2. Cleanup Prometheus:

kubectl delete -f https://raw.githubusercontent.com/kmesh-net/kmesh/main/samples/addons/prometheus.yaml

If you are not planning to explore any follow-on tasks, refer to the quickstart cleanup instructions to shutdown the application.
